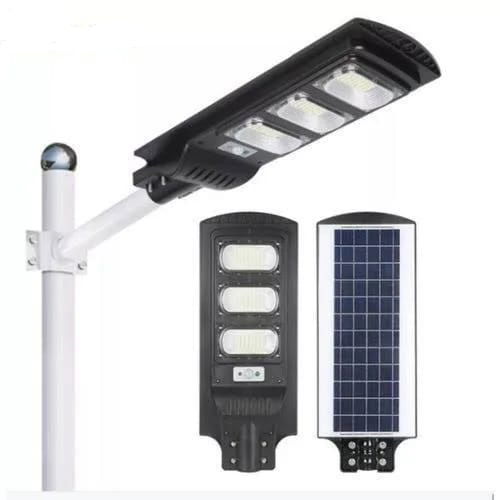

Integrated All-in-One Solar Street Light

Integrated All-in-One Solar Street Light. This is a heavy-duty, commercial-grade outdoor lighting solution typically used for driveways, parking lots, and community roads.

All-in-One Integrated Design

This model is an "All-in-One" (AIO) unit, meaning the Solar Panel, LED Light Engine, LiFePO4 Battery, and Intelligent Controller are all housed in a single, streamlined chassis.

• Ease of Installation: Since there is no external wiring, it can be mounted on a pole or wall in minutes.

• Durability: The body is typically made of high-quality ABS plastic or Die-cast Aluminum with an IP65/IP66 waterproof rating, making it resistant to heavy rain, dust, and heat.

2. Lighting & Performance

• Multiple Wattage Options: These units commonly come in 300W, 400W, and 600W versions. (The larger the wattage, the more LED chips and the larger the battery).

• High-Lumen Output: It uses high-efficiency SMD LED chips (often 3030 or 5730), providing a "Cool Daylight" color temperature (around 6500K) for maximum visibility.

• Wide Beam Angle: The optical lenses are designed for a 120° to 140° spread, ensuring a wide area of coverage and eliminating dark spots.

3. Smart Control Modes

The light is designed to manage its own power to ensure it lasts all night:

• Dusk to Dawn: A built-in light sensor automatically turns the light on at sunset and off at sunrise.

• Radar Motion Sensor: To save energy, the light typically runs at 30% brightness when no one is around. When it detects motion (within 8–10 meters), it instantly jumps to 100% brightness for about 30 seconds.

• Remote Control: It comes with a dedicated remote that allows you to:

  • Force the light ON/OFF.

  • Select "Induction Mode" (Motion Sensor).

  • Set a timer (e.g., 2H, 3H, or 4H of constant full brightness before switching to sensor mode).

4. Battery & Charging

• Lithium Iron Phosphate (LiFePO4) Battery: Unlike older lead-acid batteries, these are lighter and can handle over 2,000 charge cycles, typically lasting 5–8 years.

• Monocrystalline Solar Panel: The top of the unit features a high-conversion solar panel that can fully charge the battery in 6–8 hours of direct sunlight.

• Rainy Day Backup: Most Shenhong models are programmed with a "Rainy Day Mode" that dims the light slightly during extended overcast weather to ensure it doesn't run out of power.

Installation Recommendations
